Series 150 – PN16
About the Series

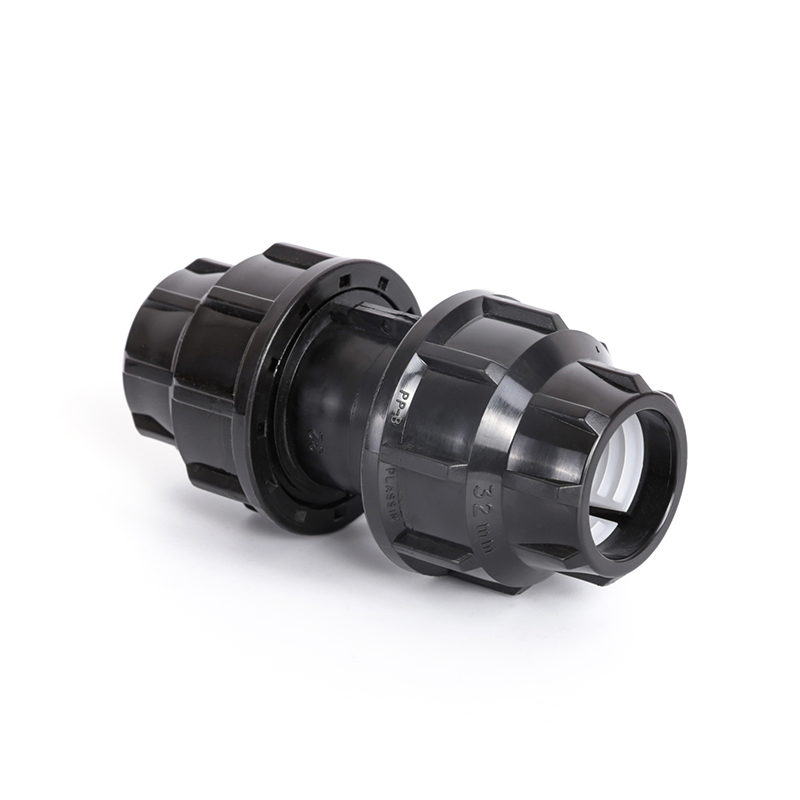

Plas-Fit series 150 Fittings are suitable for joining high and low density Polyethylene
pipes: (PE-HD, PE-LD, PE40, PE63, PE80, PE100 and PE100RC) and are manufactured according to ISO4427, EN12201.
Technical Specifications
- Fittings with diameter 16 – 63 mm are pressure rating PN16.
- Fittings with diameter 75 – 110 mm are pressure rating PN10.
- Threads are according to ISO7-1.
- Working temperature: up to 40°C.
